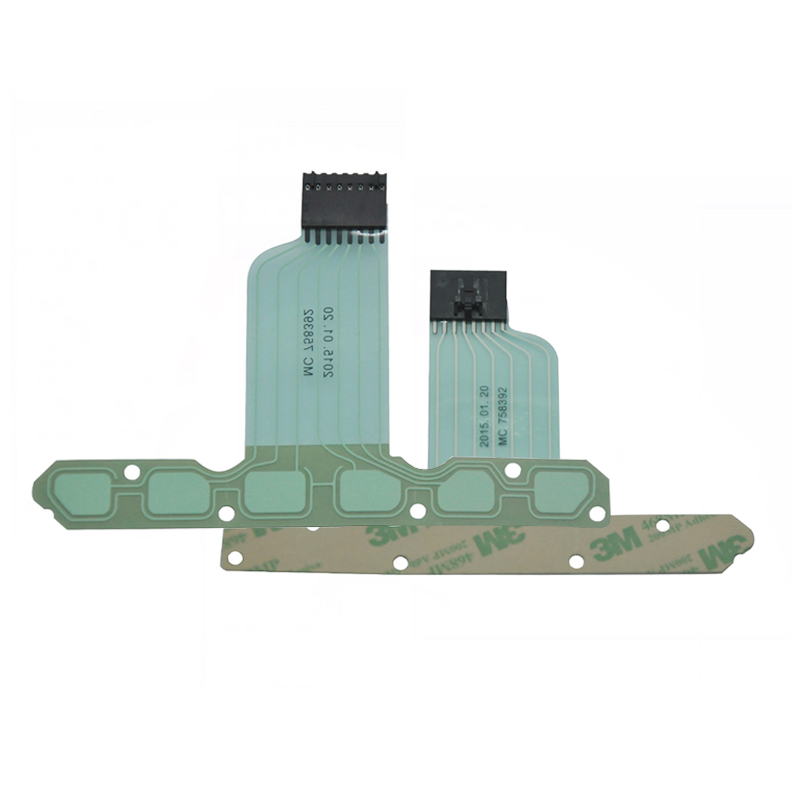

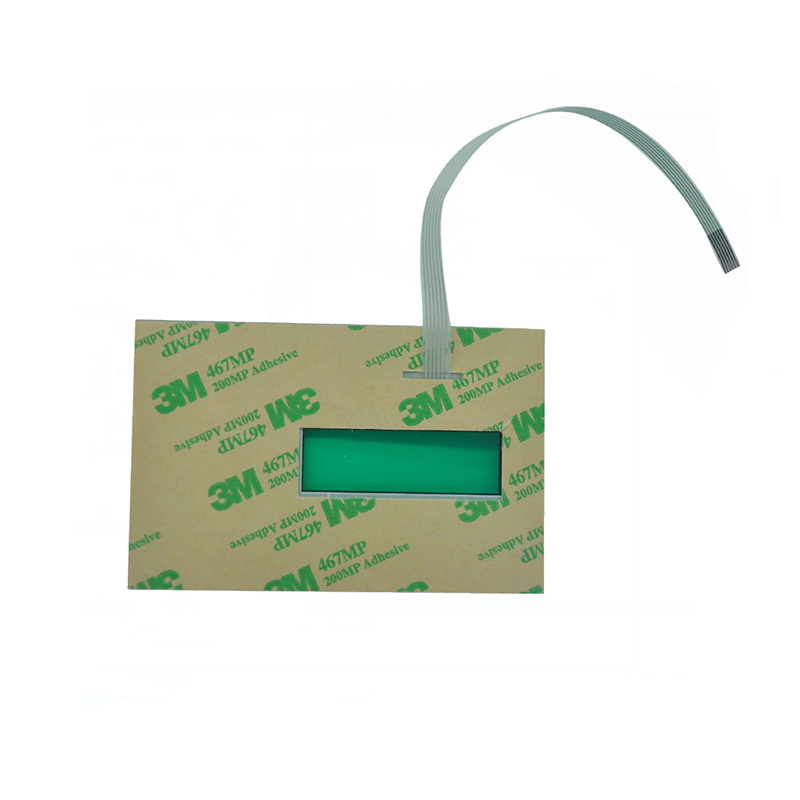

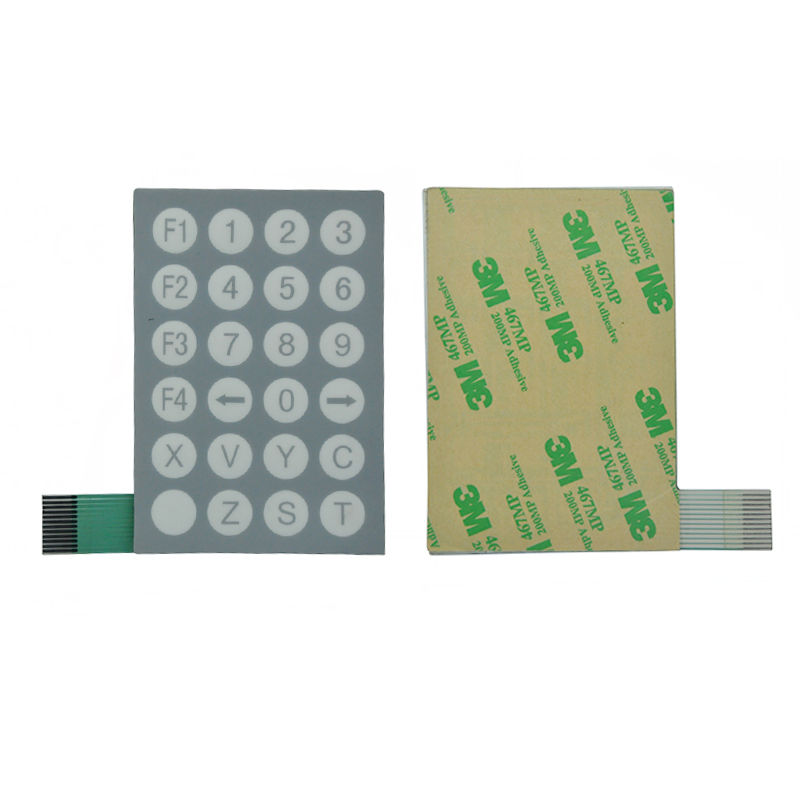

custom capacitive touch membrane keypad membrane switch
custom capacitive touch membrane keypad membrane switch
custom capacitive touch membrane keypad membrane switch
custom capacitive touch membrane keypad membrane switch
custom capacitive touch membrane keypad membrane switch
custom capacitive touch membrane keypad membrane switch

custom capacitive touch membrane keypad membrane switch

  • Application:Alarm
  • Color:Pantone, RAL
  • Material:polyester, polycarbonate
  • Adhesive:3M467/468
  • Printing:Screen Printing
  • Membrane switch:
  • OEM Membrane Switch

DESCRIPTION

art Ordinary Material
Graphic Overlay  Finish Specification
 PC  Gloss 0.175/.25/.35/.5 mm thickness
 Matt 0.175/.25/.35/.5 mm thickness
 PET  Fine Texture 0.15/.20 mm thickness
 Valet Texture 0.15/.20 mm thickness
 Gloss with Hard Coat 0.18 mm thickness
Top Adhesive  PET Double-sided Tape 0.10/.125mm
 Paper Double-sided Tape 0.10mm
 Transfer Tape 0.06/.12mm
 Retainer  PET  Gloss  0.125mm
 Spacer  PET Double-sided Tape  0.225/.275mm
 Circuit Layer  PET  Gloss  0.125mm
Rear Adhesive  Paper Double-sided Tape  0.10mm
 Transfer Tape  0.06/.12mm
Connector  Pin  Metal,Male/Female 2.54mm
 House  Female,2.54mm
Conductive Layer  Silver Paste  Acheson ELECTRODA 820B
 Carbon Paste  Acheson ELECTRODA 423SS
 Insulation Ink  Acheson ELECTRODA 452SS



Electrical Performances
Wire Resistance 0.5mm width,<1Ω/cm Rated Current 25-100mA,0-30V DC
Insulation Resistance >100MΩ 250V DC Working Voltage <50V DC
Non-tactile Switch 0.1-0.4mm Tactile Switch 0.4-1.0mm
Working Life >1 million times Working Temperature -40℃-70℃
Working Humidity 40℃,98%RH No Influence Substrate Voltage 1500V DC
Feed backTime 10ms Tail Folding  R>1,180

APPLICATIONS

Wide range of applications:

Capacitive control switch are wildly used In Consumer electronics, Kitchen Appliances, Bathroom appliances, Air conditioners and other household appliances, Car alarm system, LED application, Lighting fixture application, Solar photovoltaic applications, Audio equipment, Mobile terminal tablet, Smart Electricity grid. And most of the products have been listed on the homes of ordinary family.

Capacitive control switch are wildly used In Kitchen appliances including refrigerators, sterilizers, kitchen ventilator, range hoods, gas stoves, ovens, water heater, intelligent door monitor, intelligent entrance guard, and microwave ovens. Capacitive touch switch also wildly used In Industrial Control, Military Products etc.

PROCESSING STEPS

PROCESSING STEPS

SERVICE & GUARANTEE

Payment: T/T
Delivery: Within 15-30days after confirming the order
Advantage:

  • We have ISO 9001: 2015 authentication.
  • Small trial orders can be accepted, free sample is available.
  • Our price is reasonable and keep top quality for every clients.
  • Our factory covers an area of 15000 sq.ft and has over 100 employees now.
